Description

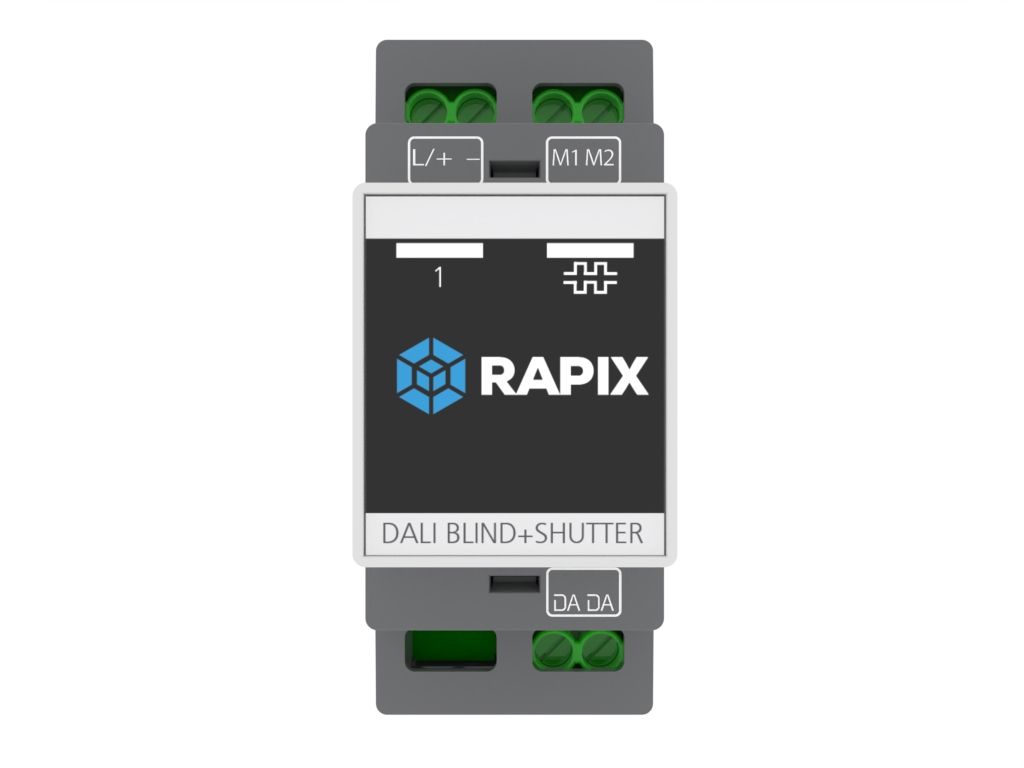

This DIN mounted relay is suitable for the control of ac and dc motors commonly used for curtains, blinds, shutters and tilting shading systems.
This relay product can be used in any DALI system.
Operations include manual control – UP/OPEN, DOWN/CLOSE and STOP. Commissioning options allow proportional control, for example setting the amount open or tilt angle.
Hardware interlocks ensure that only one of the outputs UP/OPEN or DOWN/CLOSE can be active at any time.
Cable termination uses high quality rising cage clamp style screw terminals, and is suitable for terminating 1.5 mm2 or 2.5 mm2 cables (ac supply cables, switched load cables and DALI Line cables).
This product needs no external power supply – it is powered from the DALI line.
