Description

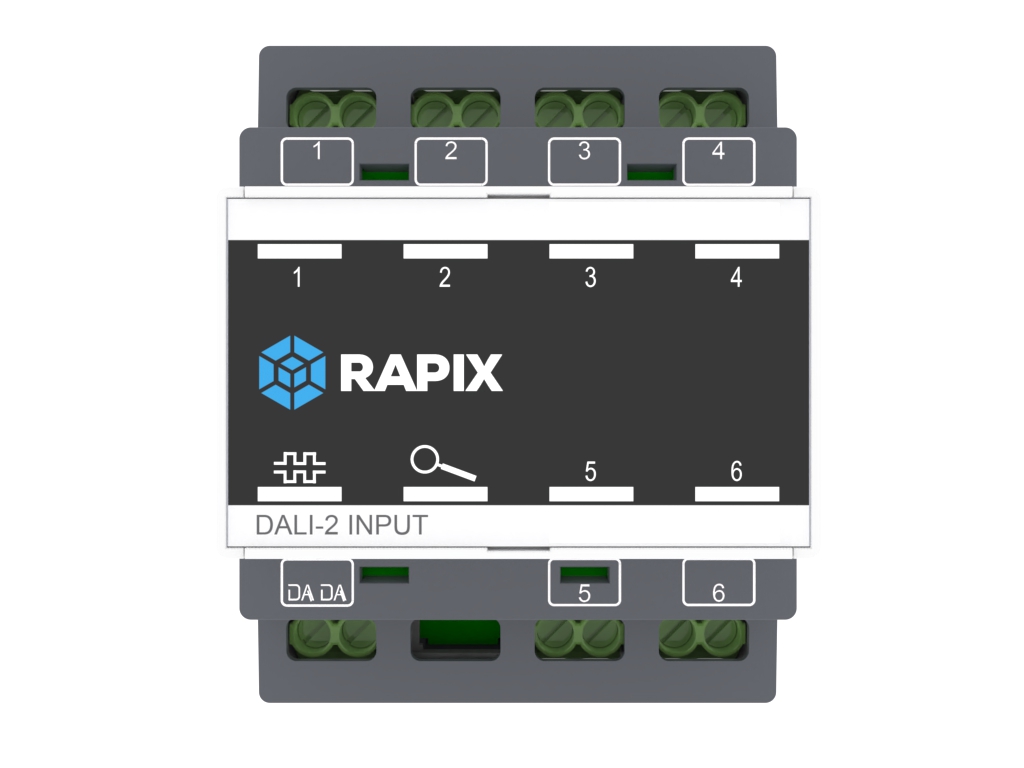

The RAPIX DIN mount Universal Switch Input is a DALI-2 Push Button Input Device with six inputs and built-in Application Controller. Each input is electrically isolated from the other inputs and from DALI. Inputs are suitable for very long wiring connection to switches or voltage-free (dry) contacts.
Each input can be configured for use with push-button momentary switches, toggle switches, or voltage free (dry) relay contacts typically found on motion / occupancy sensors. The input type can be configured using DALI commands.
This product suits interfaces to other systems that use relay contacts, long wiring runs to specialised sensors, and other interface or input functions.
DALI-2 Systems
This device is suitable for use in any DALI-2 system, and it can be set up using any software that commissions DALI-2 input devices.
When used in other DALI-2 systems, the internal application controller should be disabled.
RAPIX Systems
This product can optionally act as a miniature DALI Application Controller, allowing sophisticated reactions to be configured for switch or voltage-free contact inputs. Multiple devices can easily be used on a single DALI line.
The internal Application Controller is commissioned using the free RAPIX Integrator or RAPIX Addressing software, and when this is used the input type is automatically set depending on desired product operation, with over 20 possible functions that can be selected for each input. If a suitable function is not supported, Ozuno can create a custom function that is easily deployed using RAPIX Addressing or RAPIX Integrator software.
Control capability includes Short Addresses, DALI Groups, Broadcast, Scenes, RAPIX enhanced scenes, and more.
During operation, each input can be enabled or disabled based on a DALI Short Address, or optionally by system rules managed by a RAPIX Zone Controller.
Like other RAPIX Application Controllers a Zone approach is used, where Zones can comprise a mix of DALI short addresses, groups, or the DALI broadcast.
