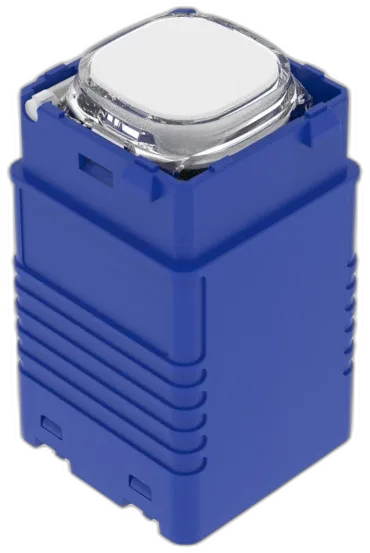

Modular Classic Push Button
Classic push modules for any DALI-2 system, including RAPIX. Choose master (connects to the DALI line) or slave (pairs with a master and shares its address). Coloured finishes add the matching bezel to your cart as a separate item with the module.
UK wall plate not included — gallery images show modules fitted for reference only. Order a UK switch wall plate separately if you need one.
One master supports one slave allowing two switches to share one DALI-2 short address. Masters and slaves, push and rotary, can be mixed on one UK plate. See more about how modular switches work.
Need a plate with switches and finishes together? Use the plate builder.
Accessories
- Dials, bezels and rings — spares and black dolly
- Anti-vandal kit
- Panel mount clip
- Diva retractive push · Rotary
DALI / DALI-2
| Certification | DALI-2 Certified, multi-master |
|---|---|
| Compatibility | DALI and DALI-2 |
| IEC 62386 parts | 101 Ed 2; 103 Ed 2 (control devices); 301, 302, 332 |
| Instance types | Type 1 Push Button (master/slave); Type 2 Absolute 8-bit (rotary instances; unused on push) |
| Feature type | 332 (indicator / feedback on push instances) |
| Control device addresses | One DALI-2 control device short address; no control gear short address |
| DALI line current | 4 mA (master) |
| GTIN |
|
Physical
| Shipping weight | 0.03 kg |
|---|
-
