DGOZ DM 400W 01.6

Adaptive Phase Dimmer

Configuration SKU Price Qty
Adaptive Phase Dimmer DGOZ-DM-400W-01 Sign in to see pricing

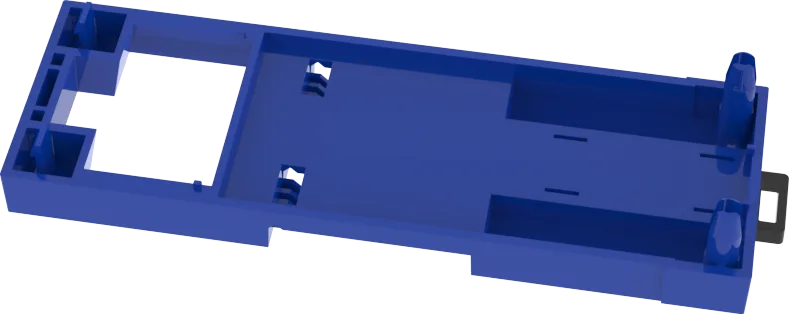

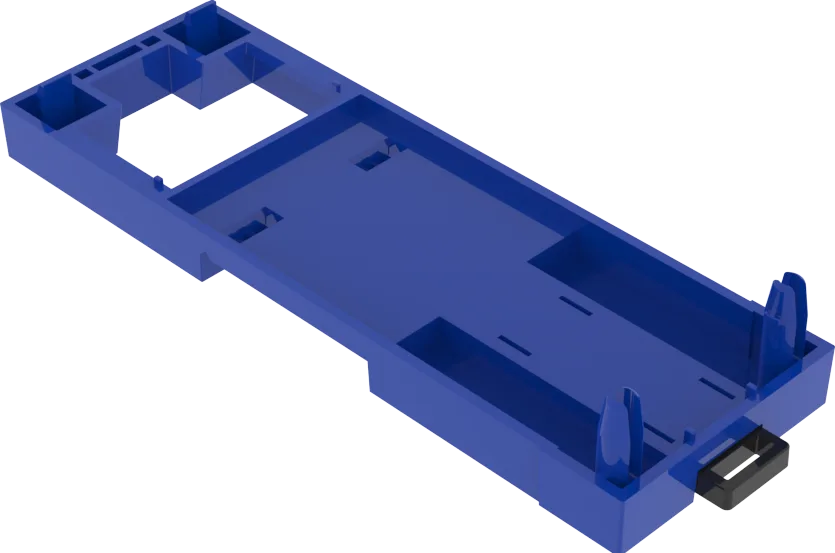

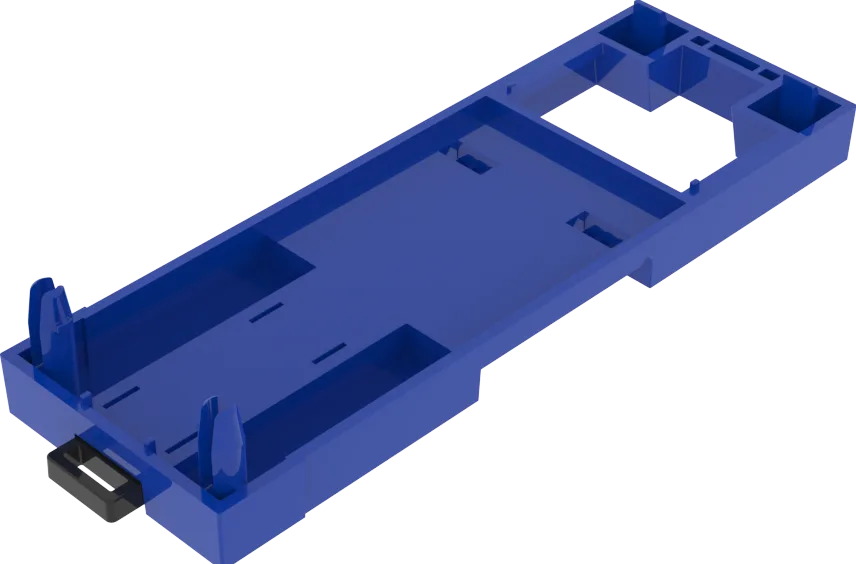

DIN Rail Bracket Optional — clips the dimmer onto standard DIN rail DGOZ-SML-DINBKT Sign in to see pricing

The RAPIX DALI-2 Trailing Edge Adaptive Phase Dimmer is suitable for dimming of mains-powered, phase dimmed loads. DALI commands are translated to mains trailing edge dimming. Typical loads are incandescent lamps, dimmable LED lamps, or dimmable Compact Fluorescent Lamps.

This DALI dimmer is optimised for phase dimmable LED loads, but also works with all common load types including Incandescent, dimmable CFL and halogen lighting with electronic or magnetic (iron-core) transformers.

A large space is included for terminating 1.5 mm² or 2.5 mm² double insulated cables for the ac mains supply cable, switched load output and DALI cable.

Surface-mount via the 6 mm holes, or add the optional DIN Rail Bracket listed above — also used on other similar-sized modules.
