DIN Relay – 12 Amp

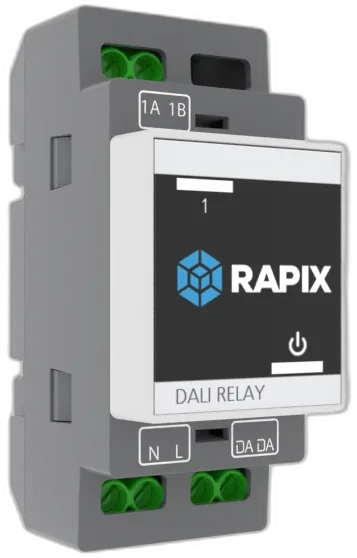

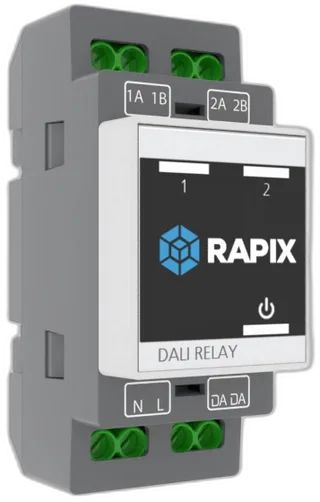

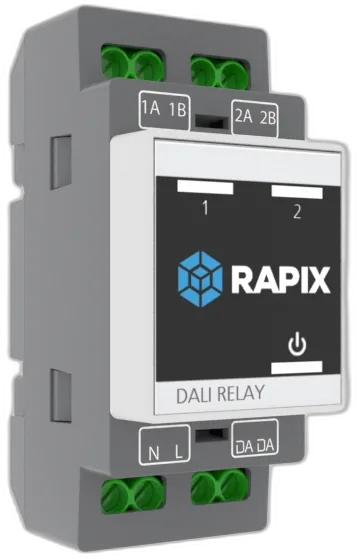

These DALI one and two channel DIN mount Relays are designed for on/off switching of up to 12 Amps of lighting load via DALI commands issued on a connected DALI line.

Each relay channel is capable of switching 12 A of LED, fluorescent, incandescent and HID lighting loads for ac line voltages of 100 – 240 V, making it suitable for a wide range of commercial and industrial building applications.

Relay cable termination uses high quality rising cage clamp style screw terminals, and is suitable for terminating 1.5 mm² or 2.5 mm² cables (ac supply cables, switched load cables and DALI Line cables).

To maximise contact life, the relay unit includes zero cross switching which ensures that for switch-on, the relay contacts are closed at the ac voltage zero-crossing point.

Perfect for all Commercial & Industrial buildings, Education Facilities, Health care facilities, Hotels, Warehouses, and Residential Homes.
