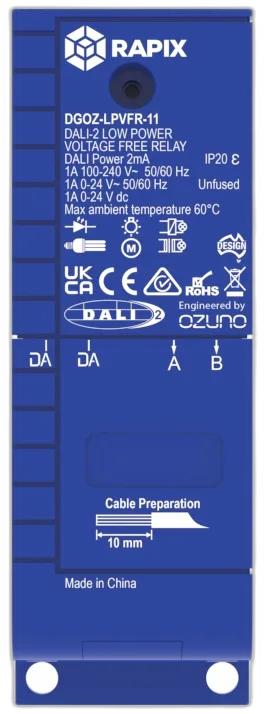

DGOZ LPVFR 11.6

One Channel Voltage Free Relay

Configuration SKU Price Qty
Voltage Free Relay DGOZ-LPVFR-11 Sign in to see pricing
DIN Rail Bracket Spare / replacement — one is included with the relay DGOZ-SML-DINBKT Sign in to see pricing

This Low Power, Voltage Free Relay is a solid-state relay switching device for use on DALI or DALI-2 systems. This relay has certified compliance to DALI-2 Device Type 7 (Switching Function) and includes support for the optional up/down switching thresholds.

The relay switching terminals are voltage-free, supporting interfacing to external systems as well as switching ac and dc loads up to 1 A.

Large terminals allow easy termination of all 1.5 mm² or 2.5 mm² double insulated cables (for example, load cables and DALI cables) making this product suitable for a wide range of interface applications as well as common load switching in commercial and industrial buildings.

Surface-mount via the 6 mm holes, or use the included DIN Rail Bracket (spare brackets are listed above — also used on other similar-sized modules).
