10 Inch Screen.1

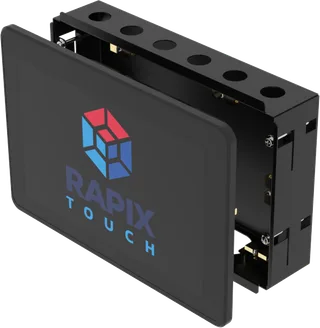

RAPIX Capacitive 10.1" Touch Panel

Configuration SKU Price Qty
10.1" Touchscreen with RAPIX Touch included DGOZ-TCH-10T-PWB Sign in to see pricing
10.1" Windows 10 LTSC Touchscreen without RAPIX software DGOZ-TCH-10W-PWB Sign in to see pricing

A / wall box mount PC with capacitive multi-touch. The front is sealed to IP65 for water and dust protection.

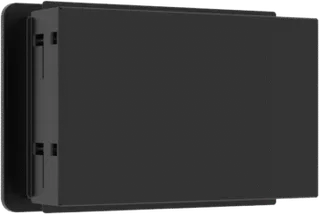

Includes a suitable for easy installation in up to 21 mm thickness plasterboard. The recessed wall box suits plasterboard only — it is not suitable for concrete or surface mounting.

This model ships with RAPIX Touch software and licence pre-installed, ready from first power-up. Fanless cooling, gigabit Ethernet, and a black bezel.

Key features

  • 10.1” display, 1280 × 800 pixels, with capacitive touch
  • Pre-installed with RAPIX Touch software and licence
  • Fanless cooling
  • Recessed wall box for plasterboard (up to 21 mm)
  • Gigabit Ethernet
  • 350 nits panel brightness
  • 267 × 182 × 64 mm overall (including wall box); 9 mm protrusion from the wall
  • Swing-out arms for clamping into plasterboard
  • Cable tie-down points in the wall box
  • Mounting slots for screwing to timber in a cavity wall

A bare-bones variant with Windows 10 IoT (LTSC) is also available for sites that want to install and configure their own software (SKU DGOZ-TCH-10W-PWB).
