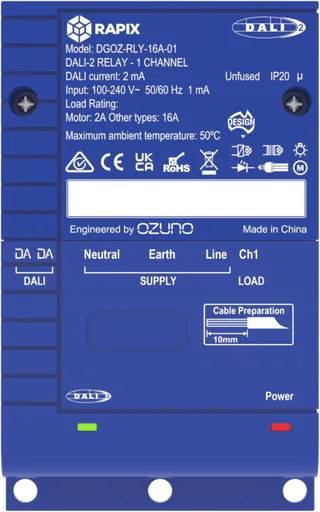

Relay – 16 Amp

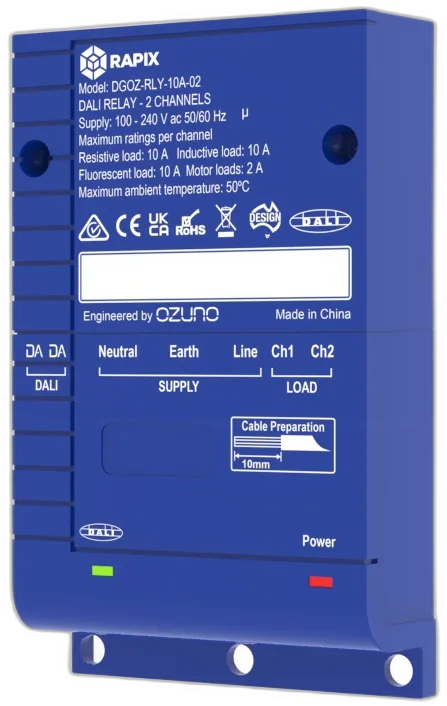

DALI one and two channel relays designed for on/off switching of up to 16 Amps of lighting load per channel via DALI commands issued on a connected DALI line.

The on-board 240 V ac rated relays are capable of switching a full 16 A of LED, fluorescent, incandescent and HID lighting loads per channel, making them suitable for a wide range of commercial and industrial building applications.

The relay unit includes a large area for terminating all 1.5 mm² or 2.5 mm² double insulated cables (ac supply cables, switched load cables and DALI Line cables).

To maximise contact life, the relay unit includes a proprietary zero cross detection feature. This ensures that when the load is switched on the relay contacts are closed at the ac load voltage zero-crossing point.

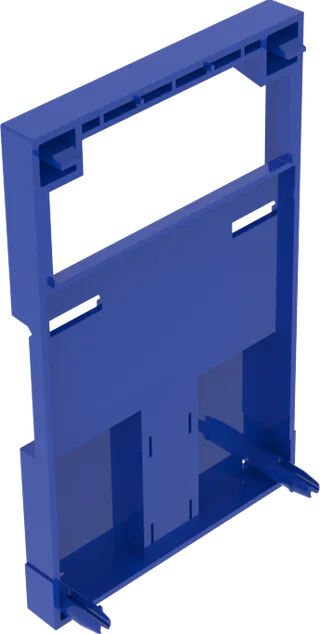

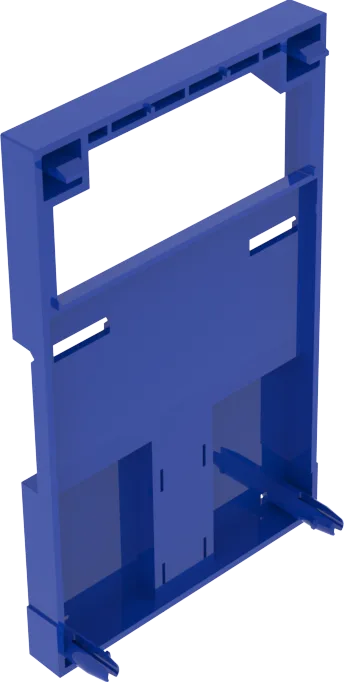

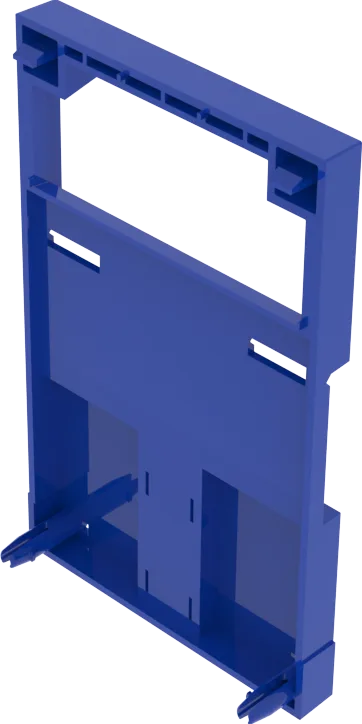

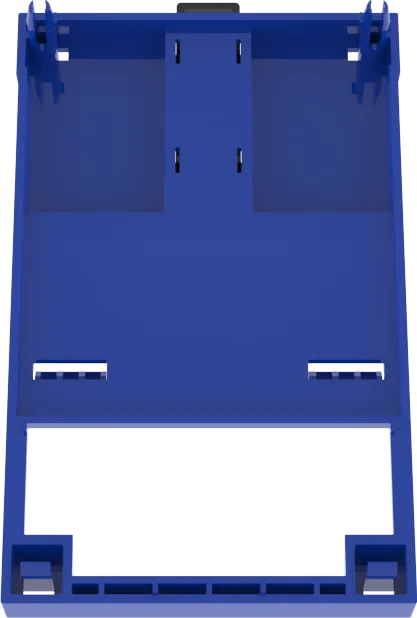

Surface-mount via the 6 mm holes, or add the optional DIN Rail Bracket listed above for DIN rail mounting.
